Mirror Demirter Bath Mirror Heat Pad

Bath Mirror Heat Pad | Mirror Demister Pad | Mirror Defogger Pad | Heating Film|Defogger Film | Anti-gof Film-12V 24V 110V 220V

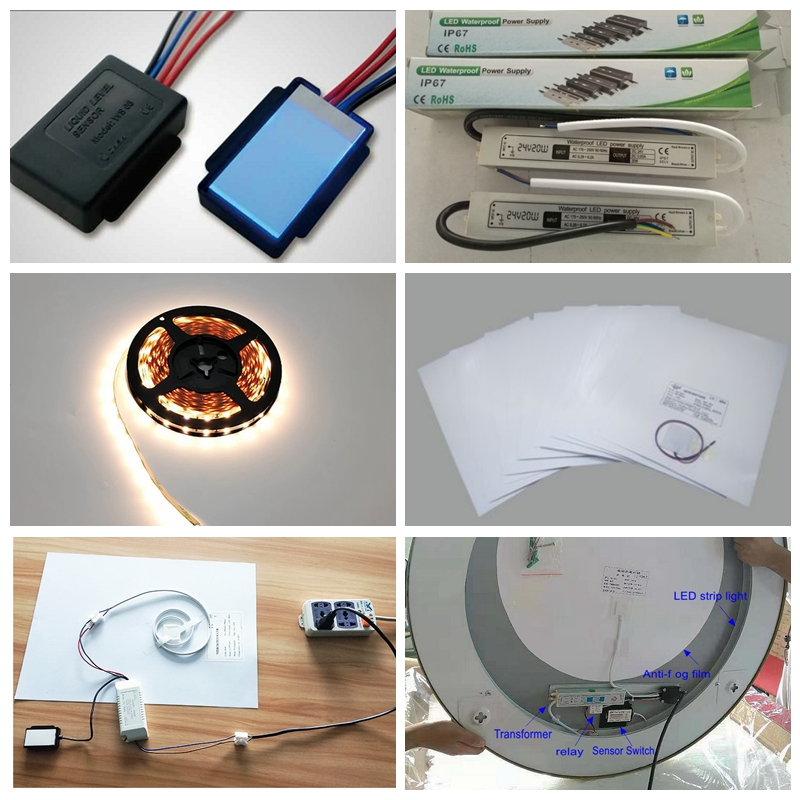

We deliver complete solutions of led mirrors including smart touch switch, led strip light, power supply,defogger pad.

\

Specification:

Model: FDS060-FM

Name: Mirror heat pad

Voltage: 12V/24V/110V/220V, 50Hz-60Hz

Wattage: 1.5-2.5W/dm²

Size: Customized size

Material: PET

Thickess: 0.4mm

Features:

★Easy to resist high temperature, with the softening point and hot melting temperature

over 180 and 260℃ respectively; never deforms when heating at low temperature;

★With outstanding wear-resisting property;

★High electric insulation, no dielectric breaks down under 2750V for 1min;

★Use imported heater strip

★NO harden in winter and soften in summer;

★Meet international certification of CE,UL,ROHS,SAA and PSE;

★The service life over 10 years。

Average value of temperature rising: 10-20℃

★Thin thickness: With a thickness of 0.4mm, the thin product can not only ensure its strength but also is beneficial to its heat transfer and installation.

★Diversified specification ns: mirror demister pad does not limit to the limitation of specifications. We are capable of supplying customized products according to the requirements of client.

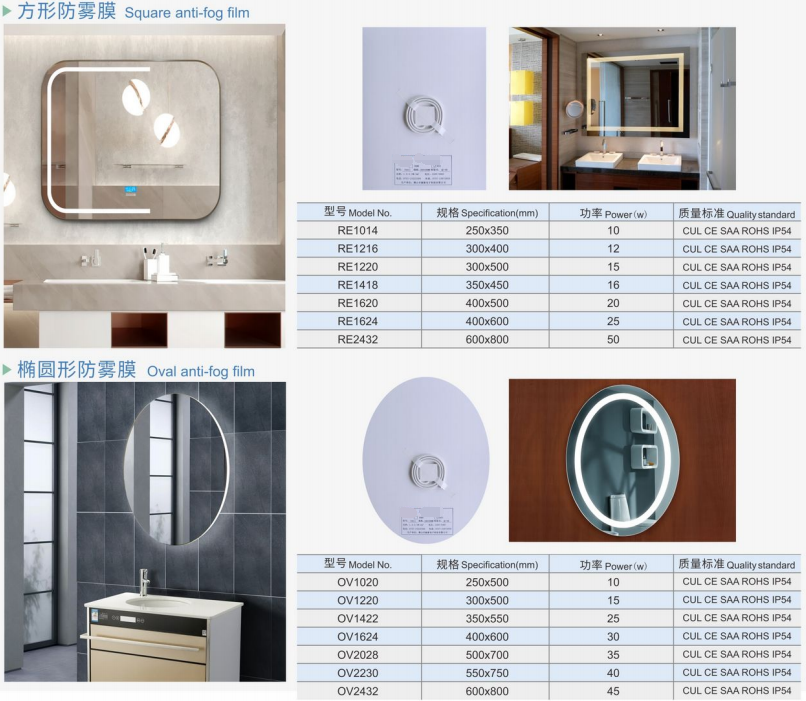

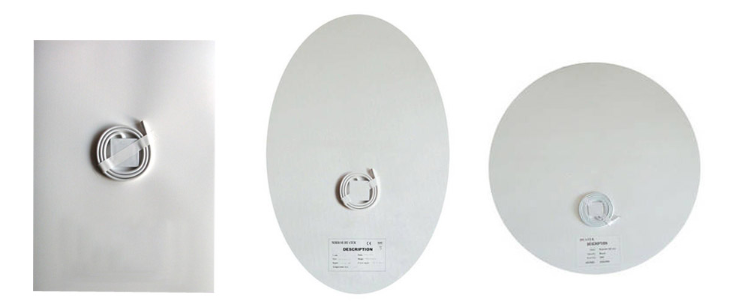

★Multiple shapes: The heating area of anti-fog film can be customized, including square ,ellipse and sector etc. they can meet the personalized design and create comfortable and beautiful environment.

★Safety and security: demister pad is made of imported top-quality environment-friendly material ,complying with the corresponding national standards; which can ensure its strength ,insulation ,and avoid electricity leakage damp condition.

★Easy to mount: By adopting the whole adhesive surface design, anti-fog heating film is easy to attach onto mirror.

More Picture:

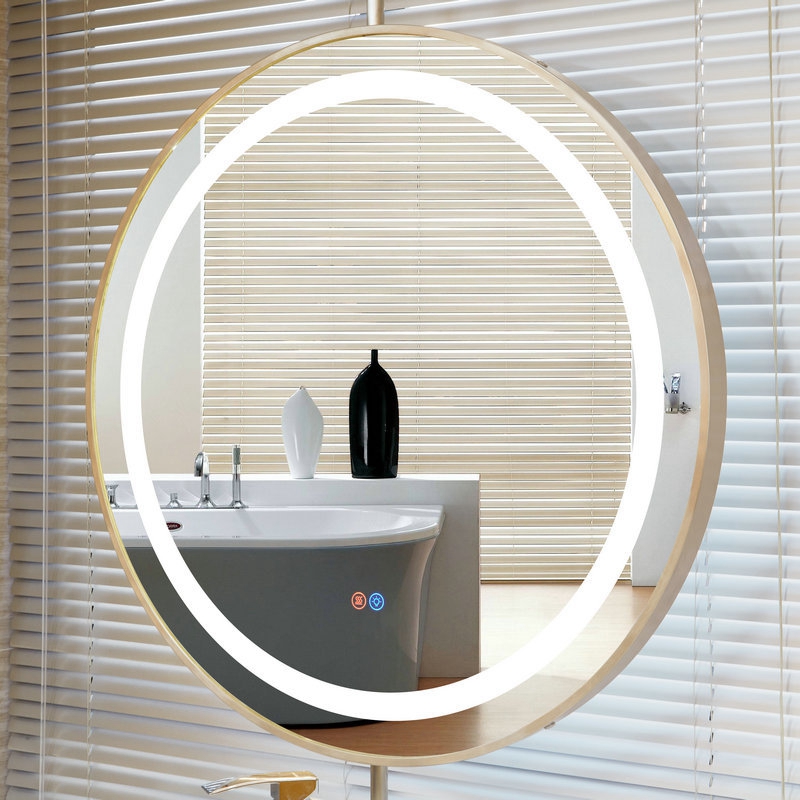

Application: use for bath mirror in residential commerical, hotel project.

Mirror Heat Pad  Q&A

Lifespan of the mirror heat pad? How many rated hours?

We provide 3 years warranty in commercial, mirror defogger pad normally can last 5 years 20000 hours, average 10 hours per day, 5 years in average lifespan.

Have you sold into hotel or commercial applications before?

Yes, most mirror demister pad and backlit mirrors are used in hotel projects

How long can the mirror heat pad run continuous at a time?

Mirror heat pad transfer electricity to heat and conduct heat to mirror surface, after starts temperature rise up, in 3-5 minutes temperature becomes 15-20 degree

If the mirror heat pad is wired the way the factory normally suggest to wire together with the switch, is there any temperature monitoring or modulation in the operation of the heat pad?

Higher than environment temperature then heat pad maintains constant temperature. For example if room is 20 degree, mirror heat pad temperature becomes around 35-40 degree then it will stay constant. Since the temperature is constant, there is no need for monitor or modulation. Our mirror demister pad material is PET, which can resist high temperature with softening point 180 degree and melt point 260 degree. So there is no limit to continuous run in mirror heat pad itself but it keeps creating heat, so normally it's controlled by switch to avoid continuous run.

What thickness mirror can the mirror heat pad be used on?

5mm thick mirror is standard; mirror heat pad can be used for 5- 6mm.

Is it likley to damage the heatpad or crack the mirror?

Normally mirror defogger pad and mirror surface are very stable no crack issues, just pay below attentions for safety:

When heating film is working it expands with heat, please leave margin 50mm each side of mirror to prepare for the expansion. Make sure no holes on mirror or heating film to avoid crack risks.

Use acrylic free neutral adhesive/glass cement to avoid corrode plating layer on mirror.

Factory Production:
